Available Width: 0–600 mm
Powder Control: Powder shake control, powder amount and direction control
Heating & Drying: Front heat plate, top dryer fixation, cold air cooling function
Media Transmission: New conveyor belt type (suction guide belt)
Take-up Function: Automatic inductive winding
Electrical Parameters: Rated Voltage: 220V, Rated Current: 42A, Rated Power: 10KW, Operational Energy Consumption: 5.5KW
Machine Dimensions: 2614 × 1022 × 1092 mm
Machine Dimensions: 2614 × 1022 × 1092 mm
Package Dimensions: 2200 × 1130 × 1150 mm

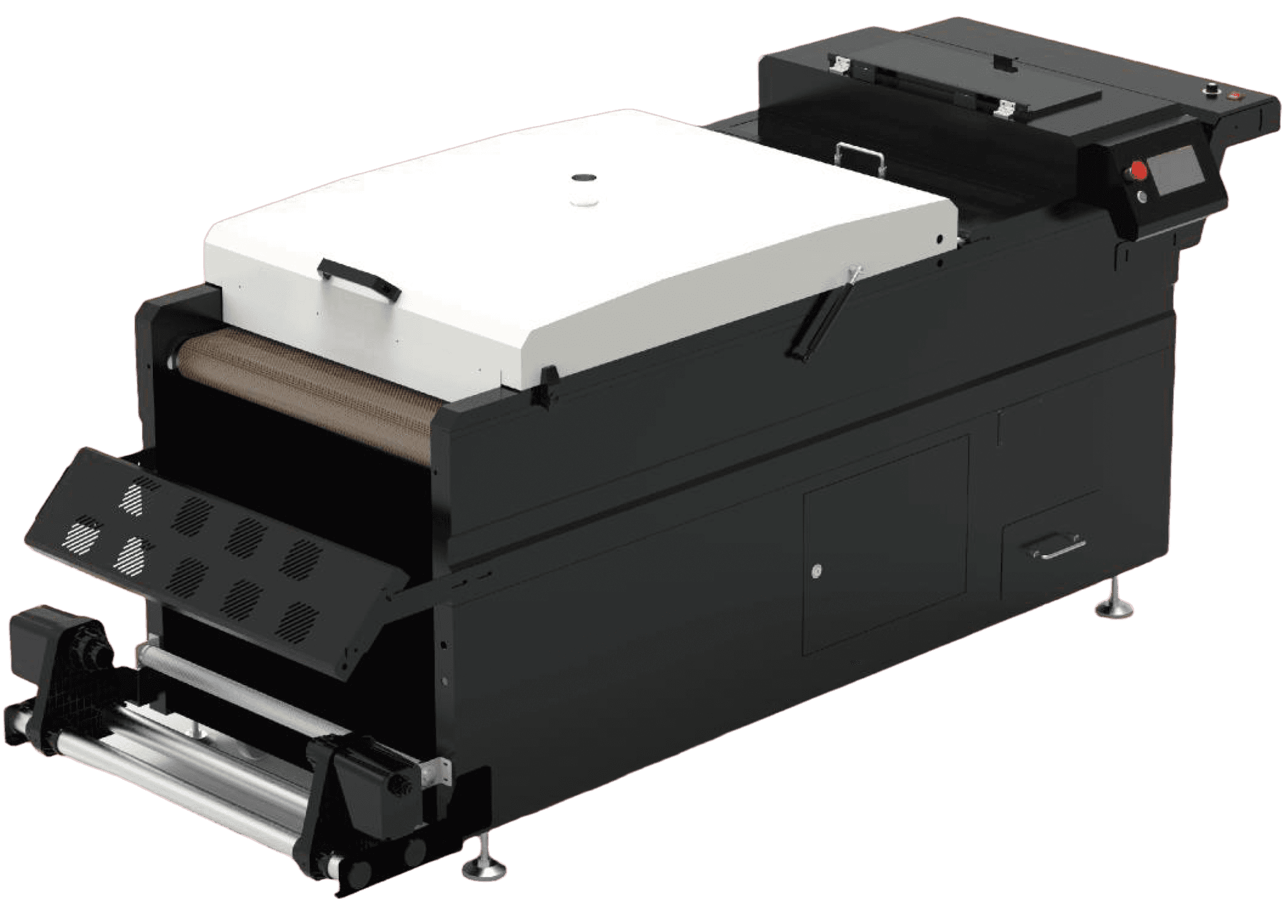

DTF Shaker: 60cm width, 9 heating lamps, touchscreen, conveyor belt, for high-volume production.
Industrial-Grade Drying with 9 Heating Lamps
Equipped with nine heating lamps distributed across a 115cm tunnel, the H6501 PLUS delivers rapid and consistent heat for thorough powder setting. This high-capacity heating system is ideal for fast-paced production environments where speed and quality cannot be compromised.
Touchscreen-Controlled Conveyor Belt System
Operate with ease using the integrated touchscreen interface. The front and rear suction conveyor belt securely holds PET film in place without needing to open the drying cover, ensuring safe, efficient, and continuous material flow.
Detachable Powder-Blocking Device
The innovative powder-blocking system prevents hot melt powder from falling during operation, significantly reducing waste and extending the time between refills. This feature saves on material costs and minimizes maintenance downtime.
Built for High-Volume and Large-Format Work
With a 60cm usable width and extended tunnel design, the H6501 PLUS allows for simultaneous drying and easy in-line cutting. It’s compatible with a wide range of materials including nylon, cotton, leather, PVC, and EVA, making it versatile for various DTF applications.
Optimized for High-Speed DTF Printers
Specifically designed to complement high-output printers like the LF-740A, this shaker keeps up with fast print speeds, ensuring a seamless end-to-end production process from printing to finishing.
Professional Support from Leaf Morocco
We provide full training and dedicated technical support to ensure your H6501 PLUS integrates smoothly into your workflow and operates at maximum efficiency.
